OPENWRT设置

控制风扇转速

root@OpenWrt:~# cat /boot/config.txt
################################################################################
# Bootloader configuration - config.txt
################################################################################

################################################################################
# For overclocking and various other settings, see:
# https://www.raspberrypi.org/documentation/configuration/config-txt/README.md
################################################################################

# OpenWrt config
include distroconfig.txt

[all]
# Place your custom settings here.
dtparam=i2c_vc=on
dtoverlay=cm4io-fan,minrpm=500,maxrpm=5000,midtemp=55000,midtemp_hyst=2000,maxtemp=65000,maxtemp_hyst=2000

添加磁盘分区

1.fdisk -l
2.fdisk /dev/mmcblk0
3.mkfs.ext4 /dev/mmcblk0p3
4.mkdir /mydata
5.mount /dev/mmcblk0p3 /mydata
6.永久挂载：vi /etc/fatab

root@OpenWrt:/etc# cat /etc/fstab
# <file system> <mount point> <type> <options> <dump> <pass>
/dev/mmcblk0p3   /mydata    ext4    defaults    0    0

ddns配置

安装软件列表：

root@OpenWrt:~# opkg list-installed | grep ddns
ddns-scripts - 2.8.2-25
ddns-scripts-cloudflare - 2.8.2-25
ddns-scripts-services - 2.8.2-25
ddns-scripts_aliyun - 1.0.3-2
ddns-scripts_dnspod - 1.0.2-1
luci-app-ddns - git-23.118.79498-4390b4d
luci-i18n-ddns-en - git-23.222.62173-d7922c4
luci-i18n-ddns-zh-cn - git-23.222.62173-d7922c4

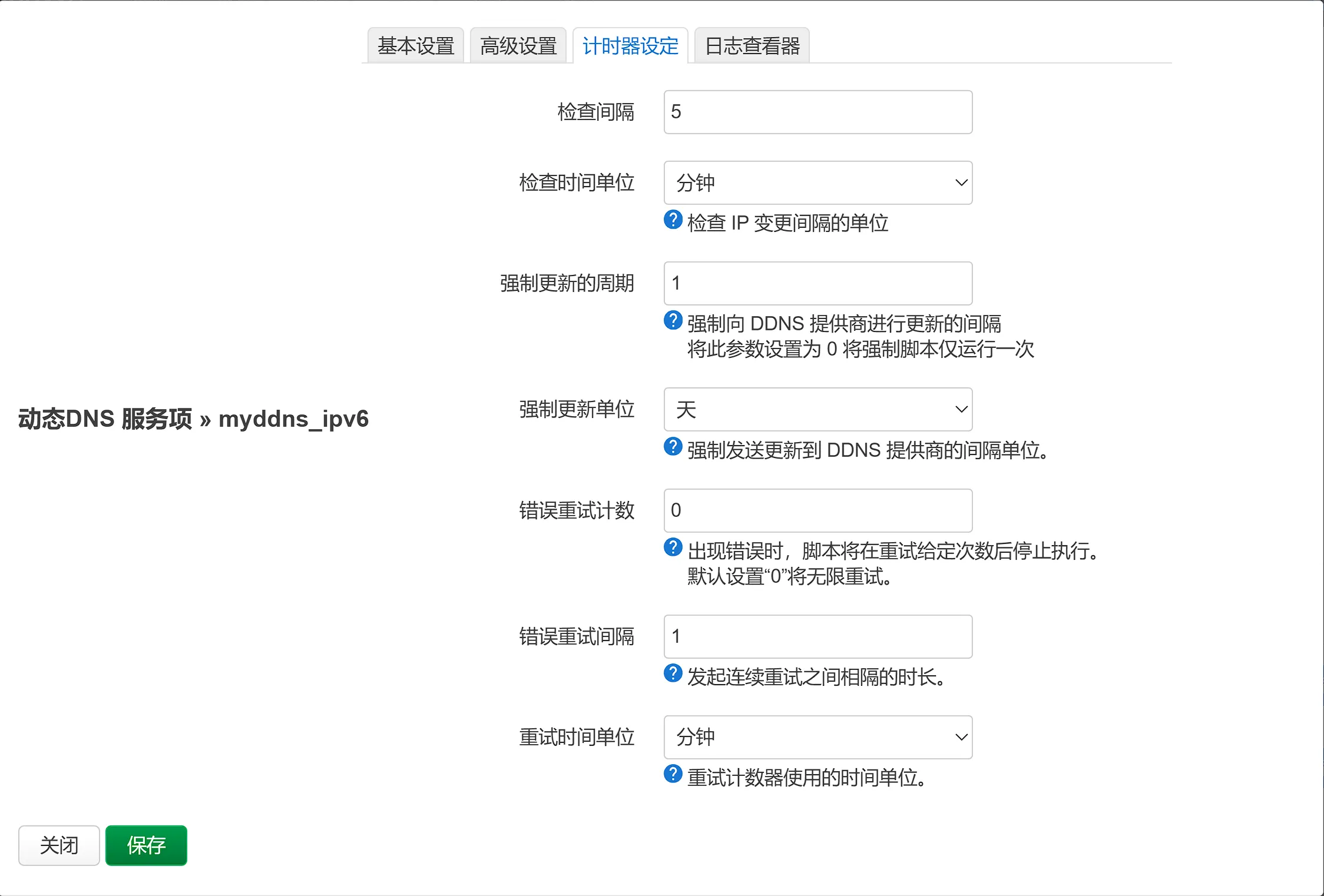

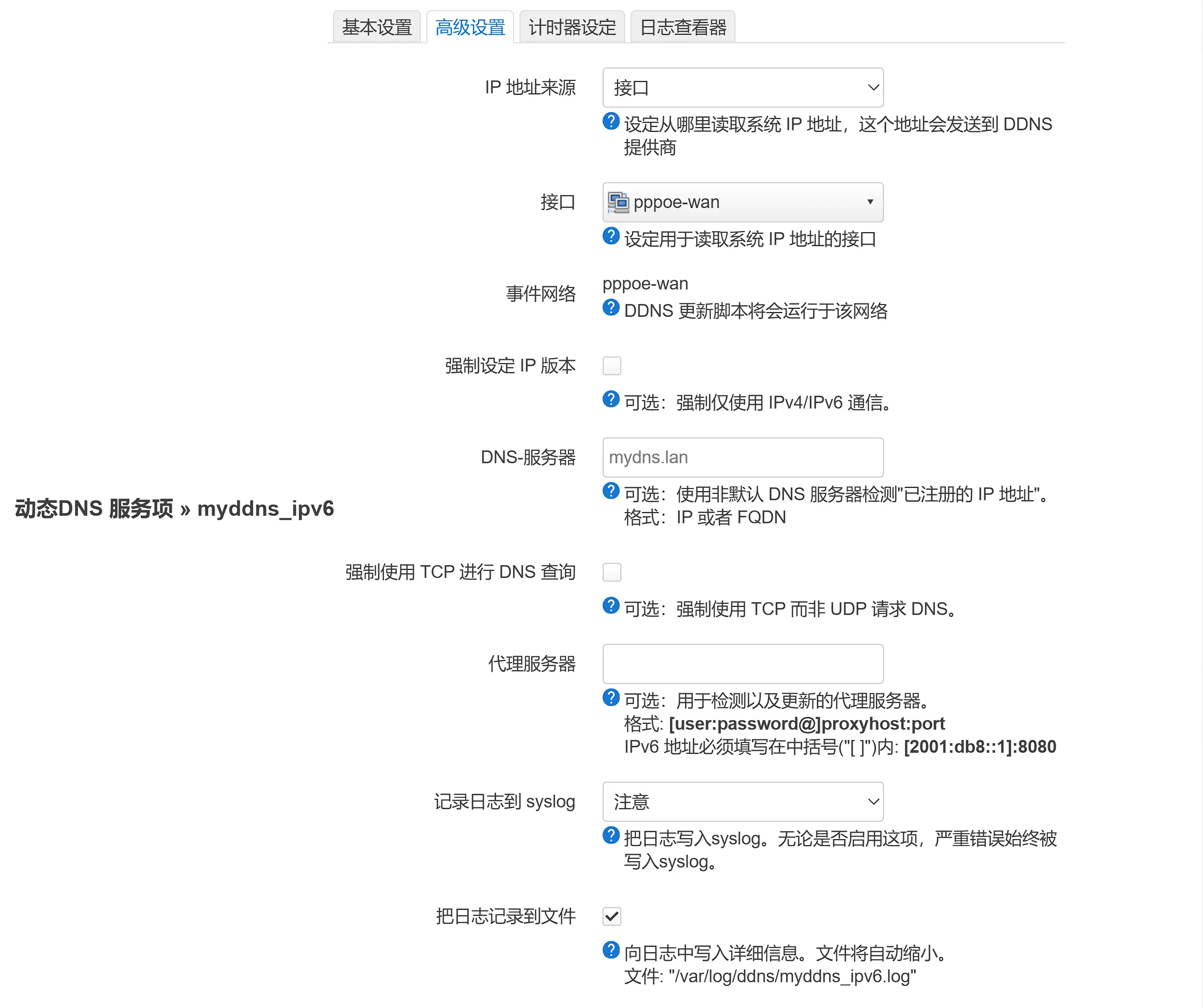

页面配置信息：

wireguard配置

安装软件列表：

root@OpenWrt:~# opkg list-installed | grep wire
kmod-wireguard - 5.10.168-1
luci-app-wireguard - git-23.018.72712-6d712c3
luci-i18n-wireguard-zh-cn - git-22.316.76227-771eb78
luci-proto-wireguard - git-23.093.40597-18a1842
wireguard-tools - 1.0.20210424-3
wireless-regdb - 2022.08.12-1

/etc/config/network文件配置：

root@OpenWrt:~# cat /etc/config/network

config interface 'loopback'
        option device 'lo'
        option proto 'static'
        option ipaddr '127.0.0.1'
        option netmask '255.0.0.0'

config globals 'globals'
        option ula_prefix 'fded:18d8:d320::/48'

config interface 'lan'
        option proto 'static'
        option netmask '255.255.255.0'
        option ip6assign '64'
        option ipaddr '192.168.30.1'
        option device 'eth1'

config interface 'wan'
        option device 'eth0'
        option proto 'pppoe'
        option username 'pppoe username'
        option password 'pppoe password'
        option ipv6 'auto'
        option ip6assign '64'
        list ip6class 'local'

config device
        option name 'wg0'
        option mtu '8920'

config interface 'wg0'
        option proto 'wireguard'
        option private_key 'private key'
        list addresses '10.66.66.33'
        list dns '127.0.0.1'
        option listen_port '51820'

config wireguard_wg0
        option public_key 'public key'
        option preshared_key 'preshared key'
        list allowed_ips '0.0.0.0/0'
        option route_allowed_ips '1'
        option endpoint_host '2603:c024:4508:xxxx::3eaa'
        option endpoint_port '49788'
        option persistent_keepalive '25'

/etc/config/firewall配置：

root@OpenWrt:~# cat /etc/config/firewall

config defaults
        option input 'ACCEPT'
        option output 'ACCEPT'
        option synflood_protect '1'
        option forward 'ACCEPT'

config zone
        option name 'lan'
        option input 'ACCEPT'
        option output 'ACCEPT'
        option forward 'ACCEPT'
        list network 'lan'

config zone
        option name 'wan'
        option output 'ACCEPT'
        option mtu_fix '1'
        option input 'ACCEPT'
        option forward 'ACCEPT'
        option masq '1'
        list network 'wan'

config rule
        option name 'Allow-DHCP-Renew'
        option src 'wan'
        option proto 'udp'
        option dest_port '68'
        option target 'ACCEPT'
        option family 'ipv4'

config rule
        option name 'Allow-Ping'
        option src 'wan'
        option proto 'icmp'
        option icmp_type 'echo-request'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-IGMP'
        option src 'wan'
        option proto 'igmp'
        option family 'ipv4'
        option target 'ACCEPT'

config rule
        option name 'Allow-DHCPv6'
        option src 'wan'
        option proto 'udp'
        option dest_port '546'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-MLD'
        option src 'wan'
        option proto 'icmp'
        option src_ip 'fe80::/10'
        list icmp_type '130/0'
        list icmp_type '131/0'
        list icmp_type '132/0'
        list icmp_type '143/0'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Input'
        option src 'wan'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        list icmp_type 'router-solicitation'
        list icmp_type 'neighbour-solicitation'
        list icmp_type 'router-advertisement'
        list icmp_type 'neighbour-advertisement'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-ICMPv6-Forward'
        option src 'wan'
        option dest '*'
        option proto 'icmp'
        list icmp_type 'echo-request'
        list icmp_type 'echo-reply'
        list icmp_type 'destination-unreachable'
        list icmp_type 'packet-too-big'
        list icmp_type 'time-exceeded'
        list icmp_type 'bad-header'
        list icmp_type 'unknown-header-type'
        option limit '1000/sec'
        option family 'ipv6'
        option target 'ACCEPT'

config rule
        option name 'Allow-IPSec-ESP'
        option src 'wan'
        option dest 'lan'
        option proto 'esp'
        option target 'ACCEPT'

config rule
        option name 'Allow-ISAKMP'
        option src 'wan'
        option dest 'lan'
        option dest_port '500'
        option proto 'udp'
        option target 'ACCEPT'

config rule
        option name 'Support-UDP-Traceroute'
        option src 'wan'
        option dest_port '33434:33689'
        option proto 'udp'
        option family 'ipv4'
        option target 'REJECT'
        option enabled '0'

config include
        option path '/etc/firewall.user'

config include 'miniupnpd'
        option type 'script'
        option path '/usr/share/miniupnpd/firewall.include'

config include 'timecontrol'
        option type 'script'
        option path '/var/etc/timecontrol.include'
        option reload '1'

config rule 'kms'
        option name 'kms'
        option target 'ACCEPT'
        option src 'wan'
        option proto 'tcp'
        option dest_port '1688'

config forwarding
        option src 'wan'
        option dest 'lan'

config zone
        option name 'wg0'
        option output 'ACCEPT'
        option input 'ACCEPT'
        option forward 'ACCEPT'
        list network 'wg0'
        option masq '1'

config forwarding
        option src 'wg0'
        option dest 'lan'

config rule
        option name 'wg'
        list proto 'udp'
        option src_port '51820'
        option target 'ACCEPT'

dnsmasq分流配置

dnsmasq配置文件：

root@OpenWrt:~# cat /etc/dnsmasq.conf
conf-dir=/etc/dnsmasq.d
no-resolv
server=8.8.8.8
server=1.1.1.1
server=223.5.5.5

/etc/dnsmasq.d中的配置文件：

accelerated-domains.china.conf 国内域名使用114.114.114.114
dnsmasq_list.conf 国外域名使用smartdns，也可以不配置，使用dnsmasq中配置的服务器
如果上面两个文件都没有匹配，则使用dnsmasq.conf中配置的server

路由分流配置

1.默认路由使用wireguard接口wg0
2.添加国内的ip地址使用pppoe-wan接口
route-add.sh
route-add-linux.txt
